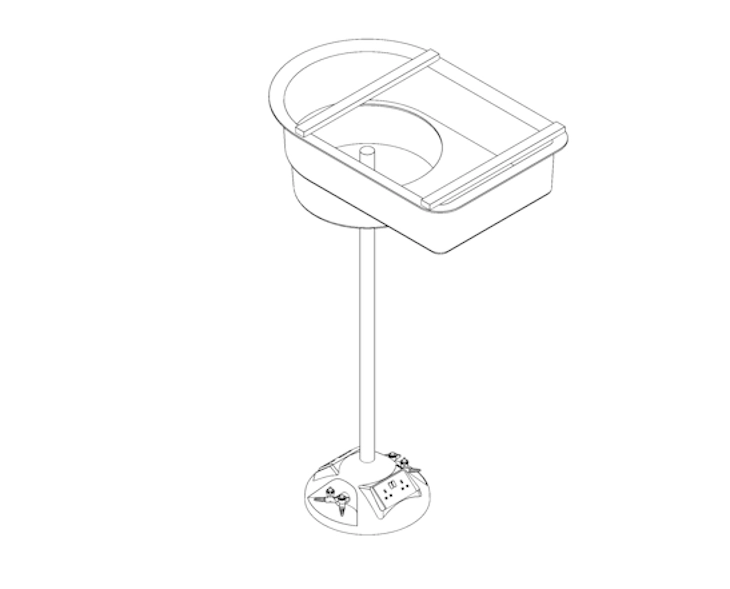

konetic - Retractable STEM service pods for schools

The Konetic ceiling unit incorporates an open-top ceiling cover, allowing ventilation into the surrounding space. For installations within a suspended ceiling, the ceiling void should be ventilated in accordance with standard building regulations for areas containing gas services.

Gas is supplied to the drop down pod via a continuous flexible hose (no joints) within a protected service umbilical, reducing leak risk and avoiding enclosed volumes. This reflects the requirements of dynamic system rather than a fixed installation. Safety is further supported through extensive validation testing, including pressure, load, endurance, and cycle testing. This risk-based design approach was reviewed during development with independent test houses and deemed appropriate for the application.

Yes, konetic pods have been through extensive testing for both gas and electrical saftey. The pod covers are made from fire retardant material.

The Konetic umbilical cord is tested to support weights of up to 100kg. It features a reinforced steel cable at its core, providing added strength and durability.

Konetic uses simple plug-and-play service connections from the ceiling unit, making installation quick and straightforward. Similar to docking a mobile unit, the services securely click into place using pre-fitted connectors. All necessary fittings are included with each Konetic unit.

The Konetic unit can accommodate a range of services, including electrical power, gas, and compressed air. It is also compatible with 110V power supply options, depending on project requirements.

Room reconfiguration is completed in seconds. The units can be raised or lowered very quickly, allowing an entire room layout to be changed in around 20 seconds.

Konetic is designed for durability and helps reduce the risk of vandalism by keeping services hidden when not in use.

Unlike traditional labs where sockets and gas taps are always exposed, Konetic units are only lowered during supervised lessons, minimising unnecessary handling and protecting the system from damage over time.

Konetic units are designed for durability and tested to 15,000 cycles, equivalent to around 10 years of use making them effectively maintenance-free under normal conditions.

If required, they are easy to service by a qualified plumber or certified gas engineer and are supported by a 5-year warranty.

Yes, the units require PAT testing in line with standard electrical safety procedures.

The Konetic system can be installed within standard ceiling height ranges as outlined in the installation brochure. For higher-than-standard ceilings, the pod can be lowered using a Unistrut framework, which is then fixed back to the structural support to ensure a secure installation.

No, a suspended ceiling is not required. The Konetic system can be installed within a suspended ceiling if one is present, or mounted on a Unistrut framework in an exposed ceiling. The ceiling cover ensures a clean, finished appearance in both installation types.

The Konetic pod weighs approximately 80kg. Exact weights and installation details can be found in the installation guide and should be used for planning purposes.
